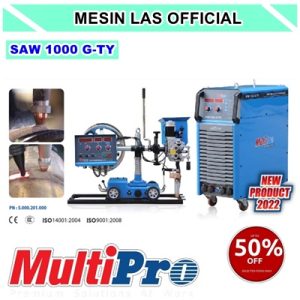

Jual Mesin Travo Las MultiPro SAW-1000 Mesin Las DC-1000 Harga Murah. Jika Anda Berminat Silahkan Hubungi Mesin Las Official Tlp.021-2268.3317 / Hp. 0812.5000.4223. Bergaransi Resmi.
POWER SOURCE |
|
| Input Voltage | 3ph 380 V ± 15% |
| Frequency | 50 / 60 Hz |
| Rated Input Power | 131.1 KVA |
| Rated Input Current | 115 A |
| No-load Voltage | SAW 90 ± 10 MMA 75 ± 5 VDC |
| Range of Output Current | 60 ~ 1000 A |
| Rated Duty Cycle | 100 % |
| Efficiency | 88 % |
| Insulation Type | F |
| Protection Type | IP21S |
| Weight | 95.5 Kg |
| Dimension (LxWxH) | 775 x 550 x 810 mm |
SAW TRACTOR 1000 G-TY |
|
| The Rated Supply Voltage | 1 ~ 110 V/50 Hz (By Power Source) |
| Suitable Diameter of Wire | Ø 2.0, 2.4, 3.0, 4.0, 5.0, 6.0 |
| Rated Welding Current | 1600 A |
| Rated Duty Cycle | 100 % |
| Welding Speed | 20 ~ 150 cm/min |
| Wire-Feed Speed | 25 ~ 2500 cm/min (Can Choose 135 ~ 675 cm/min) |
| Wire Feed Method | Constant or Alternative Wire-Feed |
| Adjustable Range of Up-Down (The Tractor’s Column) | 100 mm |
| Horizontal Adjustable Range of (The Tractor’s Column) | 93 mm |
| The Distance of Tractor Wheel | 300 mm |
| The Distance of Tractor Axes | 350 mm |
| Horizontal Rotated Angle (The Head Round the Column) | ±90° |
| Front-Back Sloped Angle (The Tractor’s Head) | ±45° |
| Left-Right Sloped Angle (The Tractor’s Head) | ±45° |
| Capacity of Flux Hopper | 6 L |
| Capacity of Wire Reel | 25 Kg |
| Protection Grade | IP21C |
| Weight (Without Flux and Wire) | 54 Kg |
| External Dimension | 1020 x 480 x 740 mm |
STANDARD ACCESSORIES
- 15m Control Cable
- 5m Earth Cable
- Tractor (Feed Roller Provided 3-4mm & 4.2-5mm)
SUITABLE
- Low Alloy Steel
- Stainless Steel
- Nickel-base Steel
- Surfacing Applications (were-facing, build-up, and corrosion resistant overlay of steel)
- Structural and Vessel Construction
- Heavy Industrial
MULTIPRO adalah sebuah merek keluaran PT. Multi Mayaka yang telah bergerak dibidang mesin kompresor angin & perangkat cat selama puluhan tahun. Pengalaman di bidang ini menghasilkan MULTIPRO sebagai mesin mesin kompresor angin yang berkualitas, handal, tahan lama namun dengan harga yang terjangkau. Dengan jaminan Garansi 12 Bulan (6 bulan pertama garansi full sparepart & 6 bulan kedua garansi servis), menjadikan Anda akan merasa nyaman dan aman dalam menggunakan mesin kompresor angin keluaran MULTIPRO. Adapun Servis Center Multi Mayaka telah tersebar di lebih dari 17 kota di seluruh Indonesia. Selain itu kualitas servis centernya cukup dapat diandalkan, dari mulai ketersediaan sparepart dan juga teknisi yang baik.
