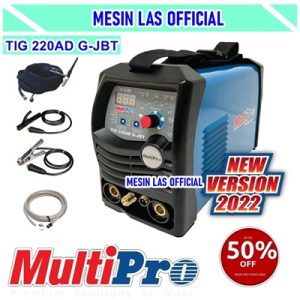

Jual MultiPro Mesin Las TIG 220AD G-JBT. Jika Anda Berminat Silahkan Hubungi Mesin Las Official Tlp.021-2268.3317 / Hp. 0812.5000.4223. Harga Murah.
| DETAIL PRODUCT | |
| Input Voltage | 1ph 220 V ± 15% |
| Frequency | 50 / 60 Hz |
| No-load Voltage | 65 VDC |
| Rated Input Power | TIG : 5.0 KVA MMA :6.0 KVA |
| Rated Input Current | TIG : 22 A MMA :25 A |
| Rated Working Voltage | TIG : 16.4 V MMA :25.6 V |
| Range Of Output Current | TIG : 5~200 A MMA :10~160 A |
| Arc Force Current Range | 0 – 40 |
| Rated Duty Cycle | 60% |
| Power Factor | ≥0.89 |
| Efficiency | ≥85% |
| Insulation Type | B |
| Protection Type | IP21S |
| Pulse Frequency | 0.2~200 Hz |
| Pulse Duty | 10~90 % |
| Arc Starting | HF |
| AC Frequency | 20~250 Hz |
| AC Balance | 20~80 % |
| Up Slope | 0~10 S |
| Down Slope | 0~15 S |
| Post-Flow Time | 0.5~15 S |
| Pre-Flow Time | 0.1~10 S |
| Weight | 9 Kg |
| Dimension (LxWxH) | 410x160x265 |
STANDARD ACCESSORIES
- TIG Torch Set 4 m
- Earth Clamp Set 2 m
- MMA Electrode Holder Set 2m
- Gas Hose 2m
- Hose Clip
OPTIONAL ACCESSORIES
- Argon Gas Regulator
SUITABLE
- Ferrous Metal & Non Ferrous Metal (Carbon Steel, Stainless Steel, Aluminium)
- Light & Medium Industrial
- Work with Generator
Garansi Service 1 Tahun dan Sparepart 3 Bulan.
