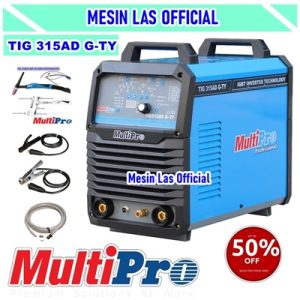

Jual MultiPro Mesin Las TIG 315AD G-TY. Jika Anda Berminat Silahkan Hubungi Mesin Las Official Tlp.021-2268.3317 / Hp. 0812.5000.4223. Harga Murah.
| DETAIL PRODUCT | |
| Input Voltage | 3ph 380 V ± 15% |
| Frequency | 50 / 60 Hz |
| No-load Voltage | 60 VDC |
| Rated Input Power | TIG : 9.3 KVA MMA : 13.8 KVA |
| Rated Input Current | TIG : 14.1 A MMA : 21 A |
| Rated Working Voltage | TIG : 10.4 – 22.6 V MMA : 20.8 – 32.6 V |
| Range Of Output Current | TIG : 10 ~ 315 A MMA : 20 ~ 315 A |
| Rated Duty Cycle | 60% |
| Power Factor | ≥0.89 |
| Efficiency | ≥85% |
| Insulation Type | F |
| Protection Type | IP21S |
| Pulse Frequency | 0.5 – 300 Hz |
| Pulse Duty | 10 – 90 % |
| Arc Leading | HF Vibration |
| AC Frequency | 60 Hz |
| Clean Width | 20 – 80 Hz |
| Up Slope | 0 ~ 10 S |
| Down Slope | 0 ~ 10 S |
| Post-Flow Time | 0 ~ 10 S |
| Pre-Flow Time | 2 ~ 10 S |
| Weight | 25 Kg |
| Dimension (LxWxH) | 515 x 275 x 465 mm |
STANDARD ACCESSORIES
- TIG Torch WP 18 4 m
- Earth Clamp Set 3 m
- MMA Electrode Holder Set 3m
- Gas Hose 2m
- Hose Clip
OPTIONAL ACCESSORIES
- Argon Gas Regulator
- TIG Welding Glove
- Argon Gas with Cylinder
- Water Cooler System
- Auto Welding Helmet
SUITABLE
- Ferrous Metal & Non Ferrous Metal (Carbon Steel, Stainless Steel, Aluminium, and etc.)
- Light & Medium Industrial, Technical School
