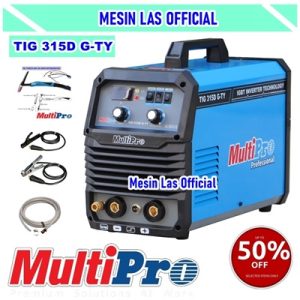

Jual MultiPro Mesin Las TIG 315D G-TY. Jika Anda Berminat Silahkan Hubungi Mesin Las Official Tlp.021-2268.3317 / Hp. 0812.5000.4223. Harga Murah.
| DETAIL PRODUCT | |
| Input Voltage | 3ph 380 V ± 15% |
| Frequency | 50 / 60 Hz |
| No-load Voltage | 65 VDC |
| Rated Input Power | TIG : 9.3 KVA MMA : 13.8 KVA |
| Rated Input Current | TIG : 14.1 A MMA : 21 A |
| Rated Working Voltage | TIG : 10.4 – 22.6 V MMA : 20.8 – 32.6 V |
| Range Of Output Current | TIG : 10 ~ 270 A MMA : 20 ~ 270 A |
| Rated Duty Cycle | 60% |
| Power Factor | ≥0.89 |
| Efficiency | ≥85% |
| Insulation Type | F |
| Protection Type | IP21S |
| Pulse Frequency | – |
| Pulse Duty | – |
| Arc Leading | HF |
| AC Frequency | – |
| Clean Width | – |
| Up Slope | – |
| Down Slope | – |
| Post-Flow Time | – |
| Pre-Flow Time | – |
| Weight | 11.6 Kg |
| Dimension (LxWxH) | 470 x 220 x 360 mm |
STANDARD ACCESSORIES
- TIG Torch WP 18 4 m
- Earth Clamp Set 3 m
- MMA Electrode Holder Set 3m
- Gas Hose 2m
- Hose Clip
OPTIONAL ACCESSORIES
- Argon Gas Regulator
- TIG Welding Glove
- Argon Gas with Cylinder
- Water Cooler System
- Auto Welding Helmet
SUITABLE
- Ferrous Metal (Carbon Steel, Stainless Steel, and etc.)
- Light & Medium Industrial, Technical School
Garansi Service 1 Tahun dan Sparepart 3 Bulan.
Mesin las Multipro TIG 315D G-TY adalah mesin las inverter arus DC multifungsi yang dapat digunakan untuk pengelasan TIG (Tungsten Inert Gas) dan MMA (Manual Metal Arc). Mesin ini dirancang untuk pekerjaan pengelasan pada material besi (baja karbon, baja tahan karat, dll.) yang digunakan di industri ringan dan menengah.
